Wide Input Range
1.5 V to 5.5 V ; 6 V abs max
RON
54 mΩ Typ at 5.5 VIN
IOUT Max
2 A
Ultra-Low IQ
2 nA Typ at 5.5 VIN
Ultra-Low ISD
13 nA Typ at 5.5 VIN
Controlled Rise Time
600 μs at 3.3 VIN
Internal EN Pull-Down Resistor
Wide Operating Temperature Range
-40 °C ~ 105 °C
HBM: 4 kV, CDM: 2 kV

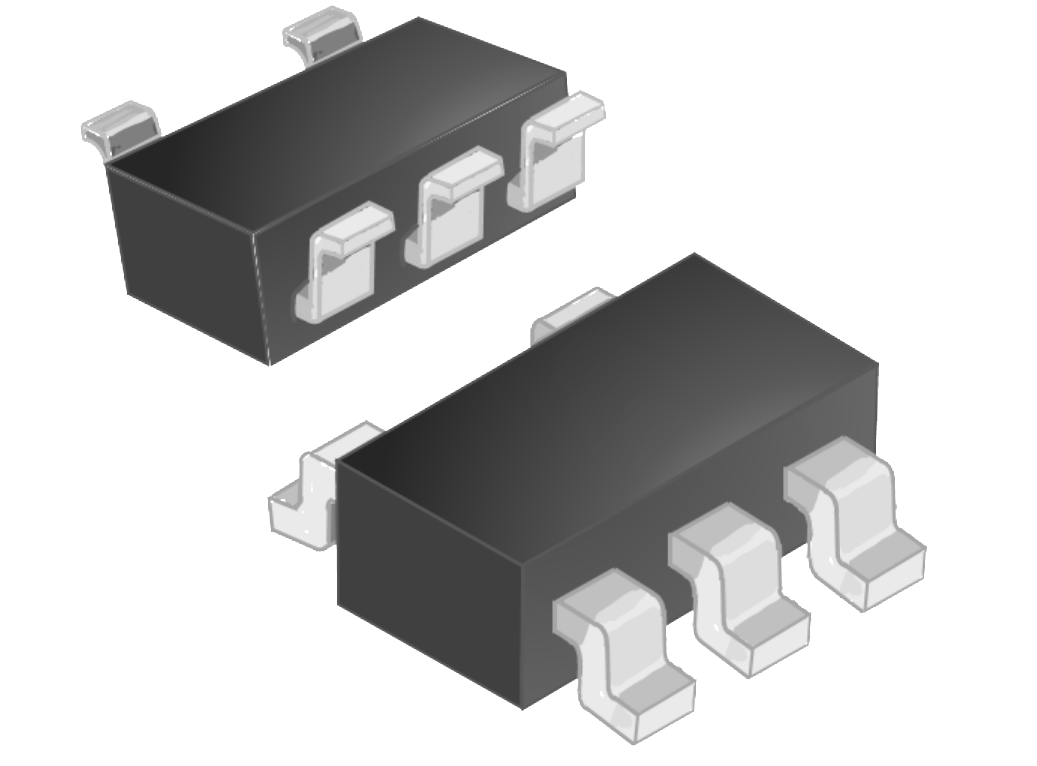

The GLF1110H is an ultra-efficiency, 2 A rated, Load Switch with integrated slew rate control. The best in class efficiency makes it an ideal choice for use in IoT, mobile, and wearable electronics.
The GLF1110H features ultra-efficient IQSmartTM technology that supports the lowest quiescent current (IQ) and shutdown current (ISD) in the industry. Low IQ and ISD solutions help designers to reduce parasitic leakage current, improve system efficiency, and increase battery lifetime.
The integrated slew rate control can also enhance system reliability by mitigating bus voltage swings during switching events. Where uncontrolled switches can generate high inrush currents that result in voltage droop and/or bus reset events, the GLF slew rate control specifically limits inrush currents during turn-on to minimize voltage droop.
The GLF1110H supports an industry leading wide input voltage range and helps to improve operating life and system robustness. Furthermore, one device can be used in multiple voltage rail applications which helps to simplify inventory management and reduce operating cost.
