Supply Voltage Range: 0.7 V to 5.5 V
Low RON
13 mΩ Typ
IOUT Max
4 A
Ultra-Low IQ
2 μA Typ at 0.7 VIN ; 14 μA Typ at 3.3 VIN ; 30 μA Typ at 5.5 VIN
Ultra-Low ISD
0.015 μA Typ at 0.7 VIN ; 0.030 μA Typ at 5.5 VIN
Controlled VOUT Turn-on Time
Internal EN Pull-Down Resistor
Integrated Output Discharge Switch
Reverse Current Blocking Protection When Disabled
Operating Temperature Range
- 40 °C to 105 °C
HBM: 8 kV, CDM: 2 kV

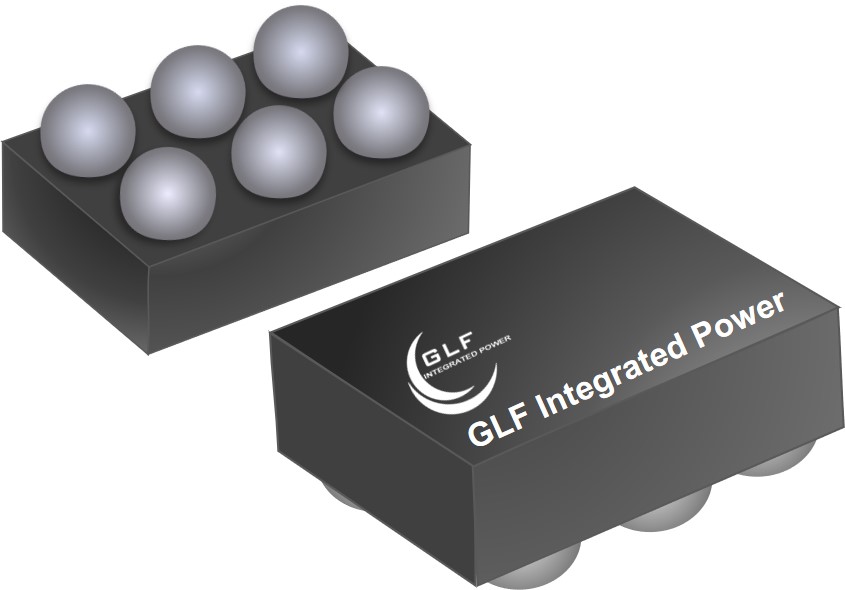

0.97 mm x 1.47 mm x 0.55 mm, 6 Bumps Wafer Level Chip Scale Package
The GLF1511 load switch is a fully integrated 4 A NMOS load switch with IQSmartTM advanced technology. The device is ideal for the mobile computing and data storage markets as a high performance solution for load switch applications.
The GLF1511 provides a constant low on- resistance of 13 m Ω at the full input voltage range. The fixed rise time helps prevent undesirable inrush current when turned on and the internal EN pin pulldown resistor ensures the device remains in the shutdown mode when disabled. In shutdown mode the GLF1511 consumes ultra-low current at the wide input supply voltage.
The GLF1511 features a reverse current blocking protection. When the GLF1511 is disabled, it prevents reverse current flowing from the output to the input source.
The GLF1511 is available in a wafer level chip scale package (WLCSP) measuring 0.97 mm x 1.47 mm x 0.55 mm with a 0.5 mm pitch. This allows the user to save board space.
