GLF71308

Nano-Current Consumed, IQSmartTM Load Switch with Slew Rate Control

首页 产品 电源负载开关芯片 GLF71308
产品特性
  • Ultra-Low IQ

    1 nA Typ @ 5.5 VIN

  • Ultra-Low ISD

    19 nA Typ @ 5.5 VIN

  • Low RON

    34 mΩ Typ. @ 5.5 VIN

  • IOUT Max

    2.0 A

  • Wide Input Range

    1.1 V to 5.5 V 6 Vabs max

  • Controlled Rise Time

    42 µs at 3.3VIN

  • Internal EN Pull-Down Resistor

  • Integrated Output Discharge Switch

  • Ultra-Small

    0.77 mm x 0.77 mm x 0.46mm

产品描述

The GLF71308 is an ultra-efficiency, 2.0 A rated, Load Switch with integrated slew rate control. The best in class efficiency makes it an ideal choice for use in IoT, mobile, and wearable electronics.


The GLF71308 features an ultra-efficient IQSmartTM technology that supports the lowest quiescent current (IQ) and shutdown current (ISD) in the industry. Low IQ and ISD solutions help designers to reduce parasitic leakage current, improve system efficiency, and increase battery lifetime.


The GLF71308 integrated slew rate control can also enhance system reliability by mitigating bus voltage swings during switching events. Where uncontrolled switches can generate high inrush currents that result in voltage droop and/or bus reset events, the GLF slew rate control specifically limits inrush current during turn-on to minimize voltage droop.


The GLF71308 Load Switch device supports an industry leading wide input voltage range and helps to improve operating life and system robustness. Furthermore, one device can be used in multiple voltage rail applications which helps to simplify inventory management and reduces operating cost.

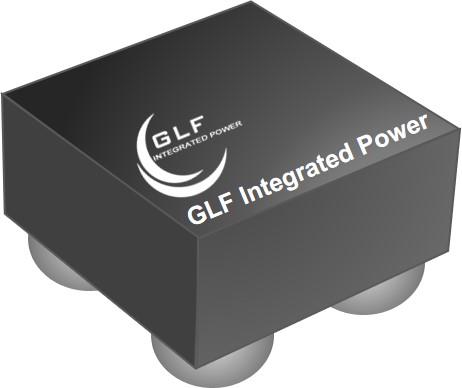

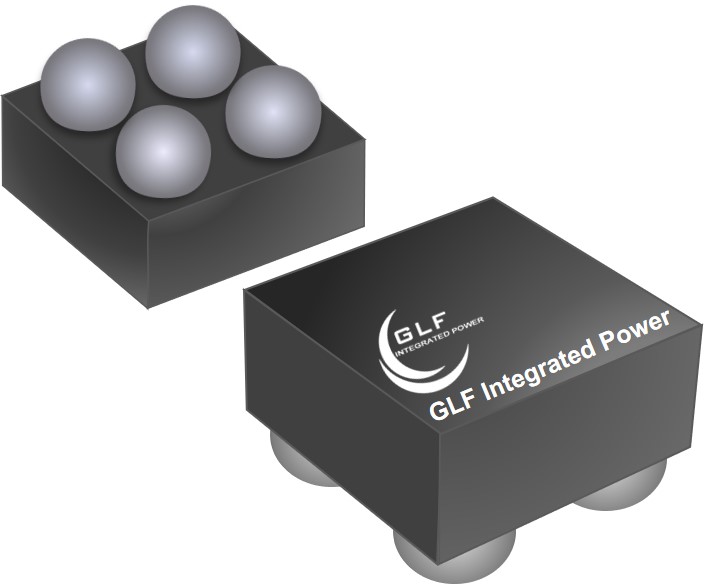

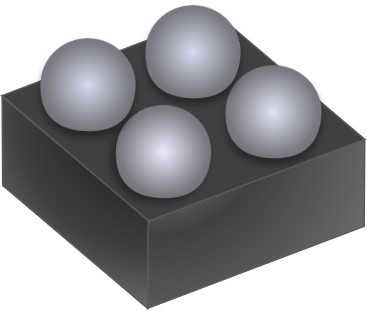

The GLF71308 Load Switch device is small utilizing a wafer level chip scale package with 4 bumps in a 0.77 mm x 0.77 mm x 0.46 mm die size and a 0.4 mm bump pitch.
