Input Range
2.5 V to 5.5 V
Programmable Output Constant Current Limit Range
40 mA to 2.8 A
Low RON
32 mΩ Typ. at 5.0 VIN
Ultra-Low IQ
19 µA Typ. at 5.0 VIN
Ultra-Low ISD
63 nA Typ. at 5.0 VIN
Under Voltage Lockout Protection
Output Voltage Slew Rate Controlled
True Reverse Current Blocking Protection
Short Circuit Protection
Deglitched Fault Flag Indication
Integrated Output Discharge Switch
Thermal Shutdown Protection

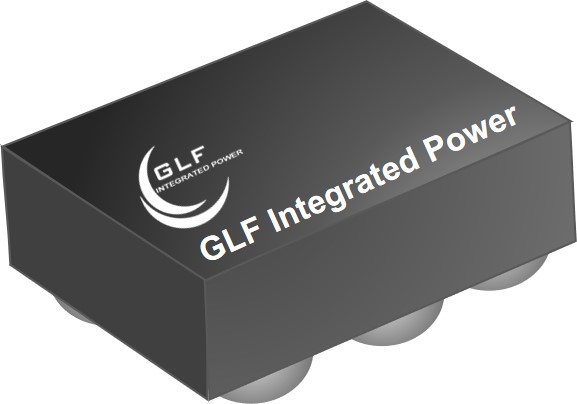

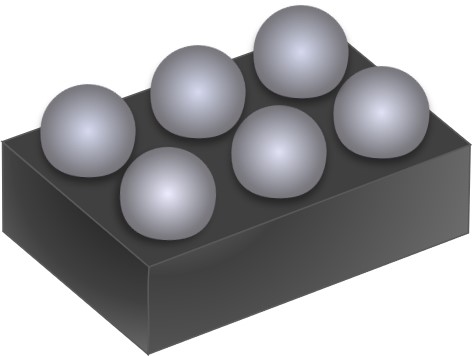

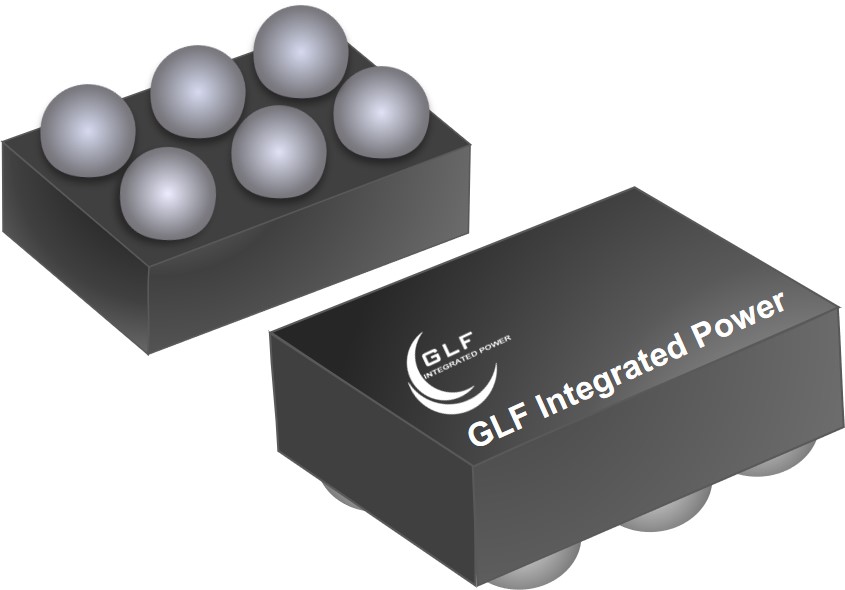

The GLF2351A is an advanced technology fully integrated power switch for applications required for precision output current limiting. The GLF2351A also features various protection functions such as under voltage lockout, true reverse current blocking (TRCB), short circuit protection, and thermal shutdown.
The GLF2351A provides a built-in output voltage slew rate control to limit the inrush current and voltage surges. The FLGB output pin can be used to send a signal of fault events to the system controller. The integrated thermal shutdown (TSD) insures complete protection for the switch during output current limit and short circuit conditions. The GLF2351A is an ideal switch for USB power supply.
