Ultra-Low IQ:
3nA Typ @ 5.5VIN
Low ISD:
50nA Typ @ 5.5VIN
Low RON :
15mΩ Typ @ 5.5VIN
IOUT Max:
4A
Wide Input Range:
1.1V to 5.5V ;6V abs max
Controlled Rise Time:
400µs at 3.3Vsub>IN
Internal EN Pull-Down & Active high
Wide Operating Temperature Range:
-40 °C ~ 85 °C
HBM / CDM
6kV / 2kV
Ultra-Small
0.97 mm x 1.47 mm x 0.55 mm
The GLF71320 is an ultra-efficiency, 4 A rated, integrated load switch with integrated slew rate control.
The GLF71320 features an ultra-efficient IQSmartTM technology that supports the lowest RON, quiescent current (IQ) and shutdown current (ISD) in the industry. Low RON reduces conduction losses, while low IQ and ISD solutions help designers to reduce parasitic leakage current, improve system efficiency, and increase battery lifetime.
The GLF71320 integrated slew rate control greatly enhances system reliability by mitigating bus voltage swings during switching events. Where uncontrolled switches can generate high inrush currents that result in voltage droop and/or bus reset events, the GLF slew rate control specifically limits inrush current during turn-on to minimize voltage droop.
GLF71320 Load Switch device supports an industry leading wide input voltage range and helps to improve operating life and system robustness. Furthermore, one device can be used in multiple voltage rail applications which helps to simplify inventory management and reduces operating cost.

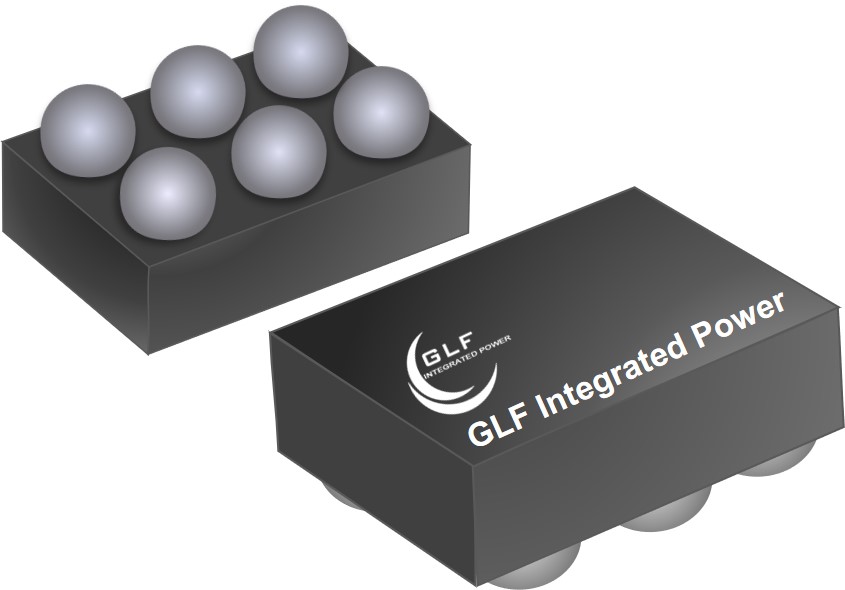

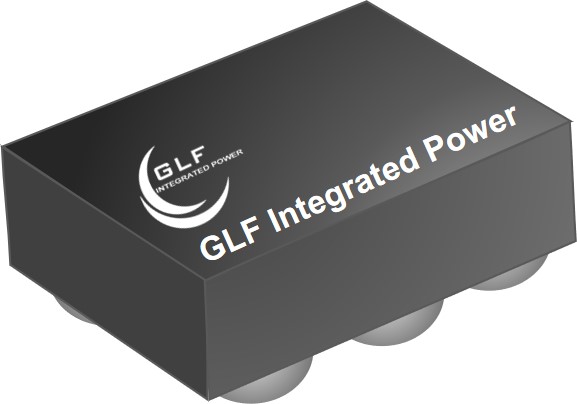

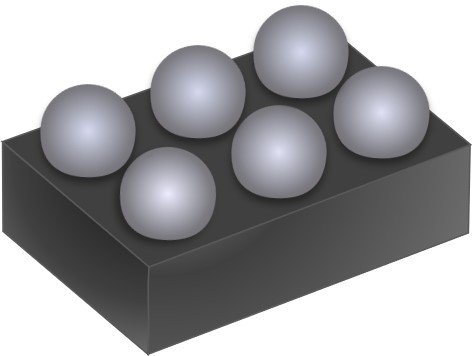

GLF71320 Load Switch device is small utilizing a chip scale package with 6 bumps in a 0.97 mm x 1.47 mm x 0.55 mm die size and a 0.5 mm pitch.
