Two-Input and Single-Output Power Multiplexer Switch
Automatic and Manual Input Selection Modes
Supply Voltage Range
1.5V to 5.5V
Ultra-Low Supply Current at Operation IQ
4 µA Typ @ 5.5 VIN
Ultra-Low Stand-by Current ISD
50nA Typ @ 5.5VIN
20mΩ Typ. @ 5.5 VIN1 or VIN2
4.5 A Continuous Output Current Capability Per Channel
Reverse Current Blocking when Disabled
Ambient Operating Temperature Range
-40 to 85 °C
HBM / CDM
6kV / 2kV

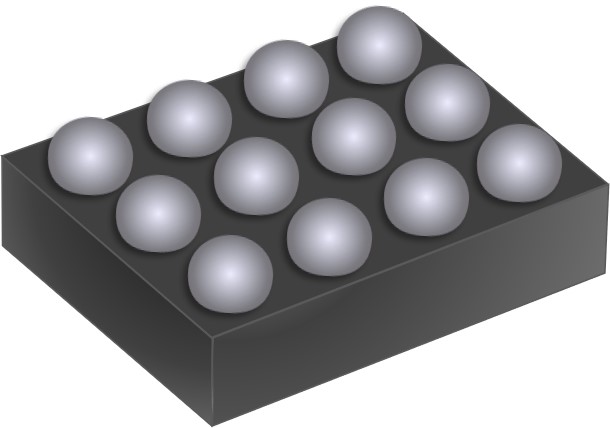

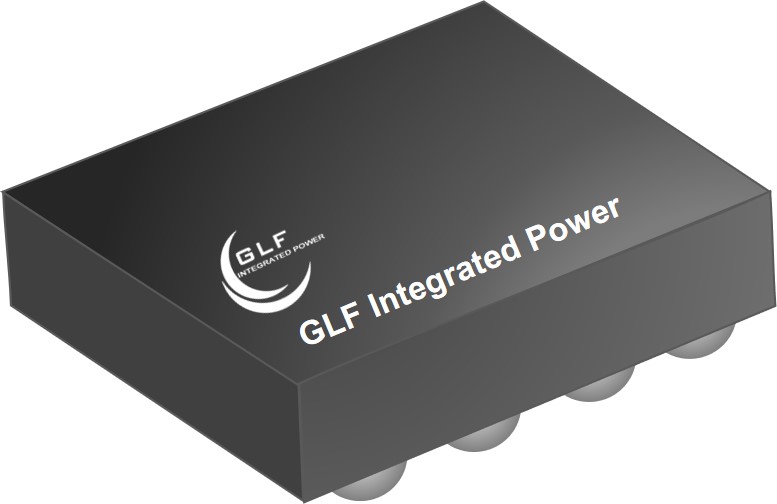

12 Bump Wafer Level Chip Scale Package
1.27 mm x 1.67 mm x 0.55 mm

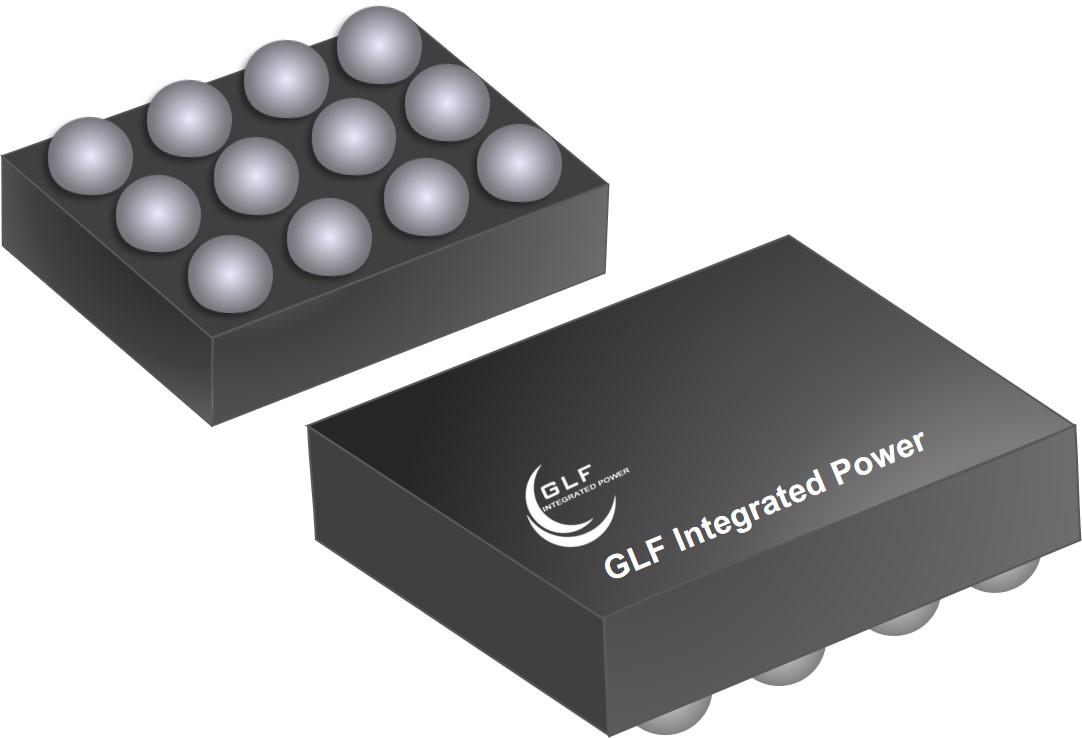

The GLF74130 IQSmartTM is an advanced technology fully integrated power path load switch with the ability to automatically select between two input sources depending on the input voltage level of each source. The power path switch is targeted for the data storage and mobile markets and is therefore available as a chip scale package utilizing 12 bumps in a 1.27 mm x 1.67 mm x 0.55 mm die size to deliver the highest performance lowest cost power path switch solution in the industry.
The GLF74130 has a built-in reverse current blocking protection. When both switches are at the off mode, the GLF74130 prevents the reverse current from a higher output voltage to the input side.
The EN pin can be used along with the SEL pin to control the switches of the GLF74130. By the combination of these two pins, one of input source selection modes is set among the automatic, VIN1, or VIN2 selection.
