GLF71301

Ultra-Small, IQ Smart™ Load Switch with Slew Rate Control

首页 产品 电源负载开关芯片 GLF71301
产品特性
  • Wide Input Range

    1.1V to 5.5V >6V abs max

  • RON

    34 mΩ Typ @ 5.5 VIN

  • IOUT Max:

    2A

  • Quiescent Current IQ

    1 nA Typ @ 5.5 V

  • Shutdown Current ISD

    19 nA Typ @ 5.5 V

  • Output Voltage Rise Time

    430us at 3.3 VIN

  • lnternal EN Pull-Down Resistor

  • Integrated Output Discharge Switch

  • Ultra-Small

    0.77mm x 0.77mm x 0.46mm

产品描述

The GLF71301 is an ultra-efficient, 2A rated, Load Switch with integrated slew rate control. At 0.77mm x 0.77mm its very small. At 34mΩ RON, it offers breakthrough efficiency that makes it an ideal choice for use in small form factor and efficient IoT, mobile, and wearable electronics.


The GLF71301 features ultra-efficient IQSmartTM technology that supports some of the lowest quiescent currents (IQ) and shutdown currents (ISD) in the industry. Low IQ and ISD solutions help designers to further reduce parasitic leakage currents, improve system efficiency, and increase battery lifetimes.

The GLF71301 integrated slew rate control can also enhance system reliability by mitigating bus voltage swings during switching events. Where uncontrolled switches can generate high inrush currents that result in voltage droop and/or bus reset events, the GLF slew rate control specifically limits inrush currents during turn-on, helping to minimize voltage droop.

GLF71301 Load Switch devices support an industry leading wide input voltage range, helping to improve operating life and system robustness. Furthermore, one device can be used in multiple voltage rail applications, helping simplify inventory management and reduce purchasing, and operating costs.

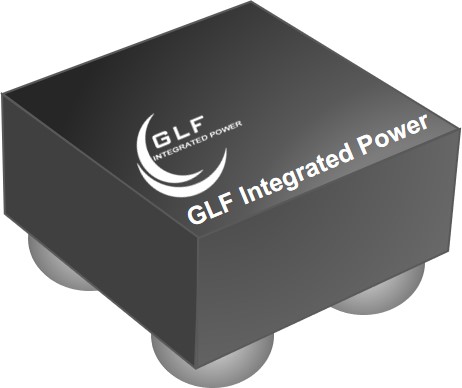

GLF71301 Load Switch devices are small. They use chip scale packaging, utilizing 4 bumps, in a 0.77mm x 0.77mm die size with 0.4mm bump pitch.
